LAB 03.01 - Model Generation

!wget --no-cache -O init.py -q https://raw.githubusercontent.com/fagonzalezo/ai4eng-unal/main/content/init.py
import init; init.init(force_download=False); init.get_weblink()
init.endpoint

from local.lib.rlxmoocapi import submit, session
session.LoginSequence(endpoint=init.endpoint, course_id=init.course_id, lab_id="L03.01", varname="student");

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from sklearn.datasets import make_moons
from local.lib import mlutils
from IPython.display import Image
%matplotlib inline

A machine learning task

We have two species of bugs (X bugs and Z bugs), for each bug we have measured its width and length. Once we have a bug, determining if is of species X or species Z is very costly (lab analysis, etc.)

Machine learning goal: We want to create a model so that, when given the width and length of a bug, will tell us whether it belongs to species X or species Z. If the model performs well, we might use it insted of the lab analysis.

To train a machine learning model we built a training dataset where we have annotated 20 bugs with their confirmed species. The training dataset has:

  • 20 data items

  • two data columns (width and length)

  • one label column, with two unique values: 0 for species X, and 1 for species Z.

d = pd.read_csv("local/data/trilotropicos_small.csv")
X,y = d.values[:,:2], d.values[:,-1]
print (d.shape, X.shape, y.shape)
print (X[:5])
print (y[:5])
d.head()

(20, 3) (20, 2) (20,)
[[0.5  0.65]
 [0.75 0.34]
 [0.37 0.5 ]
 [0.57 0.74]
 [1.   0.69]]
[0. 1. 1. 0. 1.]
width height y
0 0.50 0.65 0.0
1 0.75 0.34 1.0
2 0.37 0.50 1.0
3 0.57 0.74 0.0
4 1.00 0.69 1.0

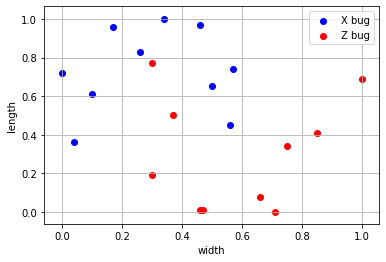

Since it is just two columns, we can visualize it

plt.scatter(X[y==0][:,0], X[y==0][:,1], color="blue", label="X bug")
plt.scatter(X[y==1][:,0], X[y==1][:,1], color="red", label="Z bug")
plt.xlabel("width");plt.ylabel("length"); plt.legend(); plt.grid();
../_images/LAB 03.01 - MODEL GENERATION_7_0.png

Task 1. Manually use a predictive model

We give you a procedure somewhat calibrated so that, given a new bug, it produces a prediction. The procedure depends on two parameters \(\theta_0\) and \(\theta_1\). Given the width \(w^{(i)}\) and height \(h^{(i)}\) of bug number \(i\), the prediction \(\hat{y}^{(i)} \in \{0, 1\}\) is computed as follows:

\[\hat{y}^{(i)} = 0\text{ if }w^{(i)}<\theta_0\text{ AND }h^{(i)}>\theta_1;\;\;\;\;\;\text{otherwise }\hat{y}^{(i)}=1\]

This can be considered as a model template, depending on two parameters.

Complete the following function so that whenever given a numpy array X \(\in \mathbb{R}^m \times \mathbb{R}^2\) containing the width and height of \(m\) bugs, returns a vector \(\in \mathbb{R}^m\) with the predictions of the \(m\) bugs as described in the expression above. The parameter t \(\in \mathbb{R}^2\) contains, in this order, \(\theta_0\) and \(\theta_1\)

Observe that your function must return a numpy vector of integers (not booleans).

CHALLENGE: solve it with one single line of code

HINT: use .astype(int) to convert a numpy array of booleans to integers.

def predict(X, t):
    return ...

check manually your code, your predictions with the following t must be

   [1, 1, 0, 1, 1, 0, 0, 1, 1, 0, 0, 1, 0, 1, 0, 1, 1, 1, 0, 0]

with an accuracy of 0.75

t = np.r_[.5,.3]
y_hat = predict(X, t)
y_hat

np.mean(y==y_hat)

observe the classification boundary that the model generates

mlutils.plot_2Ddata_with_boundary(lambda X: predict(X,t), X, y); plt.grid();

and with other t … which is better?

t = np.r_[.5,.8]
mlutils.plot_2Ddata_with_boundary(lambda X: predict(X,t), X, y); plt.grid();
np.mean(y==predict(X,t))

observe the prediction boundaries of other models. Change the max_depth of the decision tree to 2. Does it look familiar?

from sklearn.linear_model import LogisticRegression
mlutils.plot_2Ddata_with_boundary(LogisticRegression().fit(X,y).predict, X, y); plt.grid();

from sklearn.tree import DecisionTreeClassifier
mlutils.plot_2Ddata_with_boundary(DecisionTreeClassifier(max_depth=5).fit(X,y).predict, X, y); plt.grid();

from sklearn.svm import SVC
mlutils.plot_2Ddata_with_boundary(SVC(gamma=50).fit(X,y).predict, X, y); plt.grid();

submit your answer

student.submit_task(globals(), task_id="task_01");

Task 2. Fit the model

Given a set of annotated data \(X\), \(y\) and the model template of the previous exercise, complete the following function that returns \(\theta_0\) and \(\theta_1\) that produce the best accuracy on the given X and y. Consider only \(\theta_0\) and \(\theta_1\) with one decimal number between 0 and 1.

Hint: use a brute force approach, consider all combinations of \(\theta_0\) and \(\theta_1 \in\) [0.0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0]. Use np.linspace and itertools.product

Your function must return an numpy array with two elements, the resulting \(\theta_0\) and \(\theta_1\)

import itertools


def fit(X,y):
    def predict(X, t):
        return ...

    return ...

t = fit(X,y)

Check your solution with the code below. The t returned by your function should produce an accuracy of 0.9 with the example data X, y. There might be several t producing the same accuracy, you just have to return any of those.

mlutils.plot_2Ddata_with_boundary(lambda X: predict(X,t), X, y); plt.grid();
np.mean(y==predict(X,t))

you can also use your model on different data. Execute the next cells several times to see the effect on different datasets.

from sklearn.datasets import make_blobs
from sklearn.preprocessing import MinMaxScaler

bX, by = make_blobs(100,n_features=2, centers=2)
bX = MinMaxScaler(feature_range=(0.1,.9)).fit_transform(bX)

bt = fit(bX, by)

mlutils.plot_2Ddata_with_boundary(lambda X: predict(X,bt), bX, by); plt.grid();
np.mean(by==predict(bX,bt))

submit your answer

student.submit_task(globals(), task_id="task_02");

Task 3: Make an sklearn compatible class with your model

organize the previous methods in the following class structure. Bear in mind that:

  • the fit method now does not return t, which is now stored in an instance variable self.t

  • the fit method must now return self.

  • the predict method now does not accept t as argument, it must use the one stored in self.t

def SimpleModel():
    class _SimpleModel:

        def __init__(self):
            pass

        def fit(self, X, y):

            ....
            return self

        def predict(self, X):
            return ....

    return _SimpleModel()

m = SimpleModel()
m.fit(X,y)
m.predict(X)

mlutils.plot_2Ddata_with_boundary(m.predict, X, y); plt.grid();
np.mean(y==m.predict(X))

check your model with different parametrizations of the moons dataset (more and less data points, more and less noise)

from sklearn.datasets import make_moons

mX, my = make_moons(100, noise=.1)
m = SimpleModel()
m.fit(mX,my)

mlutils.plot_2Ddata_with_boundary(m.predict, mX, my); plt.grid();
np.mean(my==m.predict(mX))

submit your answer

student.submit_task(globals(), task_id="task_03");
