consulta A Tutorial on Principal Component Analysis para una decripción intuitiva y detallada de PCA y SVD

Intuición

tenemos los siguientes datos 2D y nos gustaría encontrar una proyección en 1D que preserve la máxima cantidad de variabilidad.

np.random.seed(1)
X = np.dot(np.random.random(size=(2, 2)), np.random.normal(size=(2, 200))).T+10

# center data on 0,0
X=X-np.mean(X, axis=0)
print (X.shape)

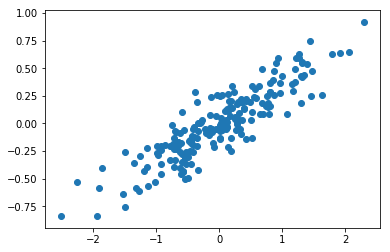

plt.scatter(X[:,0], X[:,1])
(200, 2)
<matplotlib.collections.PathCollection at 0x7fa907e03890>
../_images/NOTES 06.02 - PCA_5_2.png

recuerda que la proyección de un vector \(\vec{x}\) en otro vector \(\vec{v}\) (consulta here) viene dada por:

\[c = \frac{\vec{v}\times \vec{x}}{||\vec{v}||^2}\]
\[proj_\vec{v} \vec{x} = \vec{v} c\]

donde \(c\) es el tamaño de la proyección de \(\vec{x}\) sobre \(\vec{v}\)

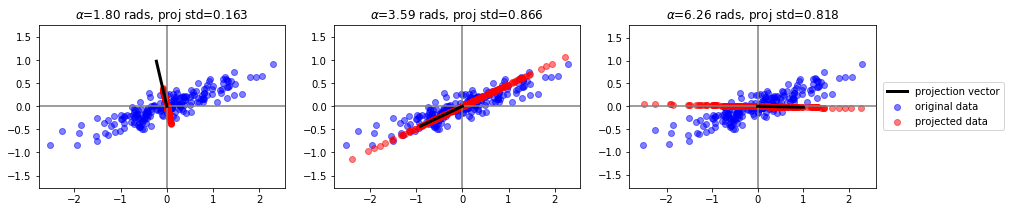

inspeccionamos algunas proyecciones

plt.figure(figsize=(15,3))

unit_vector = lambda angle: np.array([np.cos(angle), np.sin(angle)])

for i in range(3):
    plt.subplot(1,3,i+1)
    angle = np.random.random()*np.pi*2 if i!=0 else 1.8
    v = unit_vector(angle)

    c = X.dot(v.reshape(-1,1))/(np.linalg.norm(v)**2)
    Xp = np.repeat(v.reshape(-1,2),len(X),axis=0)*c

    plt.scatter(X[:,0], X[:,1], color="blue", alpha=.5, label="original data")
    plt.scatter(Xp[:,0], Xp[:,1], color="red", alpha=.5, label="projected data")
    plt.axvline(0, color="gray")
    plt.axhline(0, color="gray")
    plt.plot([0,v[0]], [0,v[1]], color="black", lw=3, label="projection vector")
    plt.axis('equal')
    plt.ylim(-2,2)
    plt.title("$\\alpha$=%.2f rads, proj std=%.3f"%(angle, np.std(c)))
    if i==2:
        plt.legend(loc="center left", bbox_to_anchor=(1.01,.5))
../_images/NOTES 06.02 - PCA_7_0.png

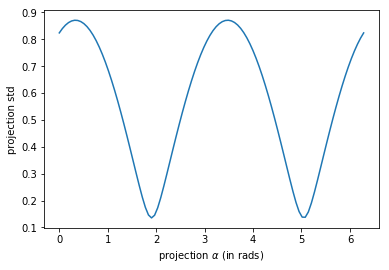

encontremos las proyecciones con mayor y menor std por fuerza bruta

def get_maxmin_projections(X):
    stds = []
    angles = np.linspace(0,np.pi*2, 100)
    for a in angles:
        v = np.array([np.cos(a), np.sin(a)])
        c = X.dot(v.reshape(-1,1))/(np.linalg.norm(v)**2)
        stds.append(np.std(c))
    v2 = unit_vector(angles[np.argmin(stds)])
    v1 = unit_vector(angles[np.argmax(stds)])

    return angles, stds, v1, v2
angles, stds, v1, v2 = get_maxmin_projections(X)

plt.plot(angles, stds)
plt.xlabel("projection $\\alpha$ (in rads)")
plt.ylabel("projection std")
Text(0,0.5,'projection std')
../_images/NOTES 06.02 - PCA_9_1.png

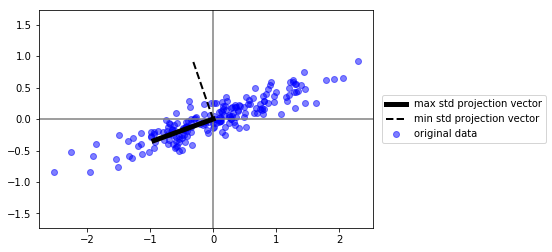

plt.scatter(X[:,0], X[:,1], color="blue", alpha=.5, label="original data")
plt.axvline(0, color="gray")
plt.axhline(0, color="gray")
plt.plot([0,v1[0]], [0,v1[1]], color="black", lw=5, label="max std projection vector")
plt.plot([0,v2[0]], [0,v2[1]], color="black", ls="--", lw=2, label="min std projection vector")
plt.axis('equal')
plt.ylim(-2,2)
plt.legend(loc="center left", bbox_to_anchor=(1.01,.5))
<matplotlib.legend.Legend at 0x7fa907afc450>
../_images/NOTES 06.02 - PCA_10_1.png

estos son los componentes principales!! observa que su dimensionalidad es la misma que los datos originales

esto es lo que PCA nos da

from sklearn.decomposition import PCA
pca = PCA(n_components=1)
pca.fit(X)
print ("sklearn PCA components")
print (pca.components_)
print ("brute force components")
print (v1)
print (v2)
sklearn PCA components
[[-0.94446029 -0.32862557]]
brute force components
[-0.93969262 -0.34202014]
[-0.32706796  0.94500082]
c = pca.transform(X)
print (c.shape)
c
(200, 1)
array([[ 6.76769235e-01],
       [-1.07121393e+00],
       [ 7.27912364e-01],
       [ 2.30964136e+00],
       [ 6.30052323e-01],
       [ 1.02448887e+00],
       [ 7.77183507e-01],
       [-1.39656414e+00],
       [-2.91049874e-01],
       [ 1.88864221e+00],
       [-7.11544293e-01],
       [ 6.38884130e-01],
       [ 5.48059617e-01],
       [-2.19312436e-01],
       [-3.87789490e-01],
       [ 7.15219956e-01],
       [-1.08373816e+00],
       [-2.99917403e-01],
       [-7.96849021e-01],
       [-8.12568346e-01],
       [-1.54018281e+00],
       [-2.52920476e-01],
       [ 6.26464454e-01],
       [-1.61007571e+00],
       [ 5.04240563e-01],
       [ 5.53935753e-01],
       [ 6.81911252e-01],
       [-2.00157228e-02],
       [ 1.13550833e-01],
       [ 2.92286085e-02],
       [-2.14393483e-01],
       [-1.03406124e+00],
       [ 3.88635004e-01],
       [ 9.96727811e-01],
       [ 1.39223653e+00],
       [ 4.57043694e-01],
       [ 6.81839901e-01],
       [-9.05233246e-01],
       [ 4.94316334e-01],
       [ 6.22411280e-01],
       [ 3.26088548e-01],
       [ 4.52560386e-01],
       [ 6.81840663e-01],
       [-2.44832816e-01],
       [-5.27149562e-01],
       [-4.51448737e-01],
       [-1.42864453e+00],
       [ 8.05233004e-01],
       [ 1.81049742e-01],
       [ 3.49039347e-01],
       [ 2.65803583e+00],
       [-1.34272221e+00],
       [-1.73026340e-01],
       [ 6.13676729e-01],
       [-1.89940741e+00],
       [-7.93074429e-01],
       [-4.17072486e-01],
       [ 1.54913526e-01],
       [ 2.44646603e-01],
       [ 7.26337140e-01],
       [-7.91592424e-01],
       [ 4.39666794e-01],
       [-2.66630687e-01],
       [-8.77131636e-01],
       [-6.37447634e-01],
       [-7.72982393e-01],
       [-1.04616382e+00],
       [ 1.15209837e+00],
       [-5.26661400e-02],
       [-9.74296354e-01],
       [-6.24348505e-01],
       [-1.00475074e+00],
       [ 5.89973268e-01],
       [ 1.50344054e+00],
       [ 1.27433349e+00],
       [-1.25658172e+00],
       [ 1.37852445e-01],
       [-1.36126475e+00],
       [ 7.27518820e-01],
       [ 4.50501231e-01],
       [-1.17577071e-01],
       [-8.49638130e-01],
       [-9.51657336e-02],
       [-1.81175961e-01],
       [ 2.81596080e-01],
       [-2.56560634e-01],
       [ 8.52804745e-01],
       [-4.77688980e-01],
       [-2.96471868e-01],
       [ 1.68108524e-03],
       [-2.05727542e-01],
       [ 8.12610001e-01],
       [-7.06157363e-02],
       [ 2.31690062e-01],
       [-1.59605923e-01],
       [-5.98727081e-01],
       [ 1.01944512e+00],
       [-7.01462226e-01],
       [-1.40420099e+00],
       [ 6.94997907e-01],
       [ 5.18636606e-01],
       [ 4.83061626e-01],
       [ 6.79198052e-01],
       [-1.30170017e+00],
       [-2.71805220e-01],
       [ 9.47603686e-01],
       [-3.49630397e-01],
       [ 4.85113462e-01],
       [-3.04715098e-01],
       [-3.31839520e-01],
       [-1.38578436e+00],
       [ 8.84502948e-01],
       [-2.47084475e+00],
       [-9.56899804e-02],
       [-4.64806358e-01],
       [ 7.06669625e-01],
       [ 1.54312708e-01],
       [ 5.45819213e-01],
       [ 1.46023727e-01],
       [ 9.57253276e-01],
       [-6.91815248e-01],
       [-1.00443516e-01],
       [ 2.77924488e-01],
       [-1.20207491e+00],
       [-6.04953108e-02],
       [-1.03273685e+00],
       [ 6.88215760e-01],
       [-1.21050656e+00],
       [-2.40052449e-01],
       [-6.06855334e-01],
       [ 1.29217575e+00],
       [-1.03282074e-01],
       [-1.41361475e+00],
       [ 7.57783205e-01],
       [ 1.41360423e+00],
       [ 1.99564613e+00],
       [ 1.66865955e+00],
       [ 1.66032125e+00],
       [ 4.24742508e-01],
       [-9.26445715e-01],
       [ 3.28504629e-02],
       [-5.17521702e-01],
       [-9.24887775e-02],
       [-3.05962249e-02],
       [ 1.30795754e-01],
       [-7.74659629e-02],
       [-4.20826569e-01],
       [ 6.78334448e-01],
       [-6.35104074e-01],
       [ 2.72075594e-01],
       [-2.26801066e-01],
       [-1.45908094e+00],
       [ 4.03275391e-01],
       [ 4.88618199e-01],
       [-3.77797862e-02],
       [ 2.25514691e-01],
       [ 3.73320407e-01],
       [ 9.96559672e-01],
       [ 6.68655132e-01],
       [-3.09207055e-01],
       [ 1.44746288e+00],
       [-1.27674147e-01],
       [ 1.95898129e-02],
       [-4.68331172e-01],
       [-7.59794861e-01],
       [ 2.11566325e+00],
       [-1.28843614e+00],
       [ 5.24455206e-01],
       [ 2.68082969e-01],
       [ 4.06271559e-02],
       [-1.63087335e+00],
       [ 4.50273668e-01],
       [-1.41736985e+00],
       [-3.20579341e-01],
       [-2.16095416e+00],
       [ 7.55938440e-01],
       [ 1.13147728e+00],
       [-4.01022769e-01],
       [-1.33261395e-01],
       [-1.20765775e-01],
       [ 1.03185993e+00],
       [-1.29878689e-01],
       [-4.08011754e-01],
       [ 4.17084437e-01],
       [-1.00930809e-01],
       [ 7.22839507e-02],
       [ 6.47903117e-01],
       [ 4.74689466e-01],
       [ 6.85499472e-01],
       [-1.49366216e+00],
       [-3.49297457e-01],
       [-7.79713261e-01],
       [ 5.67446775e-01],
       [ 5.18831382e-02],
       [ 1.25350822e+00],
       [-8.53016941e-01],
       [-2.61547685e-01],
       [-2.02667441e+00],
       [ 1.20688282e+00],
       [-3.53816725e-01]])

pero de modo mucho más eficiente

%timeit pca.fit(X)
144 µs ± 2.69 µs per loop (mean ± std. dev. of 7 runs, 10000 loops each)
%timeit get_maxmin_projections(X)
3.1 ms ± 62.1 µs per loop (mean ± std. dev. of 7 runs, 100 loops each)

we can use the largest component to reduce our data from 2D to 1D

podemos usar el componente mayor para reducir la dimensionalidad de nuestros datos de 2D a 1D

observa que:

\[\mathbf{X_t} = \mathbf{X} \times \mathbf{V}\]

donde:

  • \(\mathbf{X}\) son nuestros datos

  • \(\mathbf{V}\) es el vector de componentes seleccionados

  • \(\mathbf{X_t}\) son los datos transformados

así que nos estamos restringiendo a transformaciones linealer (rotaciones y escalado)

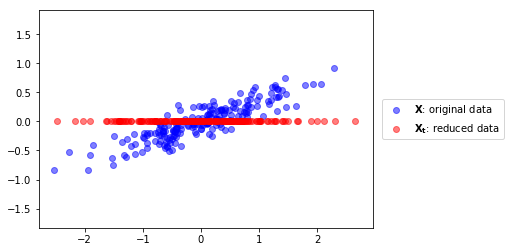

pca = PCA(n_components=1)
pca.fit(X)
Xt = pca.transform(X)[:,0]
plt.scatter(X[:,0], X[:,1], color="blue", alpha=.5, label="$\mathbf{X}$: original data")
plt.scatter(Xt, [0]*len(Xt), color="red", alpha=.5, label="$\mathbf{X_t}$: reduced data")
plt.axis("equal");
plt.legend(loc="center left", bbox_to_anchor=(1.01,.5))
<matplotlib.legend.Legend at 0x7fa905b33650>
../_images/NOTES 06.02 - PCA_18_1.png

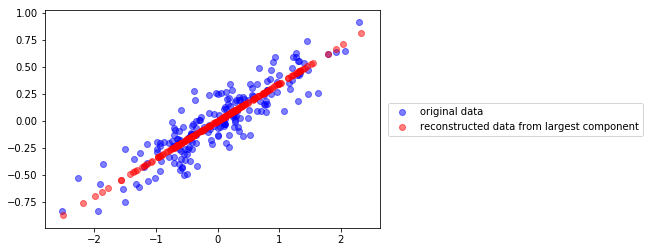

y podemos también recontruir los datos 2D después de la transformación

v0 = pca.components_[0]
c = X.dot(v0)
Xr = np.r_[[i*v0 for i in c]]
plt.scatter(X[:,0], X[:,1], color="blue", alpha=.5, label="original data")
plt.scatter(Xr[:,0], Xr[:,1], color="red", alpha=.5, label="reconstructed data from largest component")
plt.legend(loc="center left", bbox_to_anchor=(1.01,.5))
<matplotlib.legend.Legend at 0x7fa907c51d90>
../_images/NOTES 06.02 - PCA_20_1.png
