04.01 - DATA EXPLORATION

!wget --no-cache -O init.py -q https://raw.githubusercontent.com/fagonzalezo/ai4eng-unal/main/content/init.py
import init; init.init(force_download=False); init.get_weblink()

Based on Kaggle House Pricing Prediction Competition

  • Inspect and learn from the competition Notebooks

  • You must make available to this notebook the train.csv file from the competition data section. If running this notebook in Google Colab you must upload it in the notebook files section in Colab.

## KEEPOUTPUT
import pandas as pd
import seaborn as sns
import numpy as np
import matplotlib.pyplot as plt
%matplotlib inline
d = pd.read_csv("train.csv")
d.head()
Id MSSubClass MSZoning LotFrontage LotArea Street Alley LotShape LandContour Utilities ... PoolArea PoolQC Fence MiscFeature MiscVal MoSold YrSold SaleType SaleCondition SalePrice
0 1 60 RL 65.0 8450 Pave NaN Reg Lvl AllPub ... 0 NaN NaN NaN 0 2 2008 WD Normal 208500
1 2 20 RL 80.0 9600 Pave NaN Reg Lvl AllPub ... 0 NaN NaN NaN 0 5 2007 WD Normal 181500
2 3 60 RL 68.0 11250 Pave NaN IR1 Lvl AllPub ... 0 NaN NaN NaN 0 9 2008 WD Normal 223500
3 4 70 RL 60.0 9550 Pave NaN IR1 Lvl AllPub ... 0 NaN NaN NaN 0 2 2006 WD Abnorml 140000
4 5 60 RL 84.0 14260 Pave NaN IR1 Lvl AllPub ... 0 NaN NaN NaN 0 12 2008 WD Normal 250000

5 rows × 81 columns

data size

## KEEPOUTPUT
print (d.shape)

(1460, 81)

Missing values in columns

## KEEPOUTPUT
k = d.isna().sum()
k[k!=0]

LotFrontage      259
Alley           1369
MasVnrType         8
MasVnrArea         8
BsmtQual          37
BsmtCond          37
BsmtExposure      38
BsmtFinType1      37
BsmtFinType2      38
Electrical         1
FireplaceQu      690
GarageType        81
GarageYrBlt       81
GarageFinish      81
GarageQual        81
GarageCond        81
PoolQC          1453
Fence           1179
MiscFeature     1406
dtype: int64

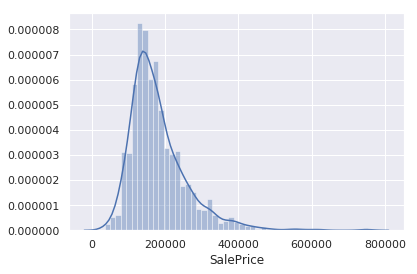

Inspect the target variable

## KEEPOUTPUT
sns.distplot(d['SalePrice']);
../_images/NOTES 04.01 - DATA EXPLORATION_9_0.png

Discover data types

## KEEPOUTPUT
d.columns

Index(['Id', 'MSSubClass', 'MSZoning', 'LotFrontage', 'LotArea', 'Street',
       'Alley', 'LotShape', 'LandContour', 'Utilities', 'LotConfig',
       'LandSlope', 'Neighborhood', 'Condition1', 'Condition2', 'BldgType',
       'HouseStyle', 'OverallQual', 'OverallCond', 'YearBuilt', 'YearRemodAdd',
       'RoofStyle', 'RoofMatl', 'Exterior1st', 'Exterior2nd', 'MasVnrType',
       'MasVnrArea', 'ExterQual', 'ExterCond', 'Foundation', 'BsmtQual',
       'BsmtCond', 'BsmtExposure', 'BsmtFinType1', 'BsmtFinSF1',
       'BsmtFinType2', 'BsmtFinSF2', 'BsmtUnfSF', 'TotalBsmtSF', 'Heating',
       'HeatingQC', 'CentralAir', 'Electrical', '1stFlrSF', '2ndFlrSF',
       'LowQualFinSF', 'GrLivArea', 'BsmtFullBath', 'BsmtHalfBath', 'FullBath',
       'HalfBath', 'BedroomAbvGr', 'KitchenAbvGr', 'KitchenQual',
       'TotRmsAbvGrd', 'Functional', 'Fireplaces', 'FireplaceQu', 'GarageType',
       'GarageYrBlt', 'GarageFinish', 'GarageCars', 'GarageArea', 'GarageQual',
       'GarageCond', 'PavedDrive', 'WoodDeckSF', 'OpenPorchSF',
       'EnclosedPorch', '3SsnPorch', 'ScreenPorch', 'PoolArea', 'PoolQC',
       'Fence', 'MiscFeature', 'MiscVal', 'MoSold', 'YrSold', 'SaleType',
       'SaleCondition', 'SalePrice'],
      dtype='object')

## KEEPOUTPUT
for c in d.columns:
    print ("%20s"%c, d[c].dtype)

                  Id int64
          MSSubClass int64
            MSZoning object
         LotFrontage float64
             LotArea int64
              Street object
               Alley object
            LotShape object
         LandContour object
           Utilities object
           LotConfig object
           LandSlope object
        Neighborhood object
          Condition1 object
          Condition2 object
            BldgType object
          HouseStyle object
         OverallQual int64
         OverallCond int64
           YearBuilt int64
        YearRemodAdd int64
           RoofStyle object
            RoofMatl object
         Exterior1st object
         Exterior2nd object
          MasVnrType object
          MasVnrArea float64
           ExterQual object
           ExterCond object
          Foundation object
            BsmtQual object
            BsmtCond object
        BsmtExposure object
        BsmtFinType1 object
          BsmtFinSF1 int64
        BsmtFinType2 object
          BsmtFinSF2 int64
           BsmtUnfSF int64
         TotalBsmtSF int64
             Heating object
           HeatingQC object
          CentralAir object
          Electrical object
            1stFlrSF int64
            2ndFlrSF int64
        LowQualFinSF int64
           GrLivArea int64
        BsmtFullBath int64
        BsmtHalfBath int64
            FullBath int64
            HalfBath int64
        BedroomAbvGr int64
        KitchenAbvGr int64
         KitchenQual object
        TotRmsAbvGrd int64
          Functional object
          Fireplaces int64
         FireplaceQu object
          GarageType object
         GarageYrBlt float64
        GarageFinish object
          GarageCars int64
          GarageArea int64
          GarageQual object
          GarageCond object
          PavedDrive object
          WoodDeckSF int64
         OpenPorchSF int64
       EnclosedPorch int64
           3SsnPorch int64
         ScreenPorch int64
            PoolArea int64
              PoolQC object
               Fence object
         MiscFeature object
             MiscVal int64
              MoSold int64
              YrSold int64
            SaleType object
       SaleCondition object
           SalePrice int64

Inspect numeric columns

## KEEPOUTPUT
d._get_numeric_data().describe().T
count mean std min 25% 50% 75% max
Id 1460.0 730.500000 421.610009 1.0 365.75 730.5 1095.25 1460.0
MSSubClass 1460.0 56.897260 42.300571 20.0 20.00 50.0 70.00 190.0
LotFrontage 1201.0 70.049958 24.284752 21.0 59.00 69.0 80.00 313.0
LotArea 1460.0 10516.828082 9981.264932 1300.0 7553.50 9478.5 11601.50 215245.0
OverallQual 1460.0 6.099315 1.382997 1.0 5.00 6.0 7.00 10.0
OverallCond 1460.0 5.575342 1.112799 1.0 5.00 5.0 6.00 9.0
YearBuilt 1460.0 1971.267808 30.202904 1872.0 1954.00 1973.0 2000.00 2010.0
YearRemodAdd 1460.0 1984.865753 20.645407 1950.0 1967.00 1994.0 2004.00 2010.0
MasVnrArea 1452.0 103.685262 181.066207 0.0 0.00 0.0 166.00 1600.0
BsmtFinSF1 1460.0 443.639726 456.098091 0.0 0.00 383.5 712.25 5644.0
BsmtFinSF2 1460.0 46.549315 161.319273 0.0 0.00 0.0 0.00 1474.0
BsmtUnfSF 1460.0 567.240411 441.866955 0.0 223.00 477.5 808.00 2336.0
TotalBsmtSF 1460.0 1057.429452 438.705324 0.0 795.75 991.5 1298.25 6110.0
1stFlrSF 1460.0 1162.626712 386.587738 334.0 882.00 1087.0 1391.25 4692.0
2ndFlrSF 1460.0 346.992466 436.528436 0.0 0.00 0.0 728.00 2065.0
LowQualFinSF 1460.0 5.844521 48.623081 0.0 0.00 0.0 0.00 572.0
GrLivArea 1460.0 1515.463699 525.480383 334.0 1129.50 1464.0 1776.75 5642.0
BsmtFullBath 1460.0 0.425342 0.518911 0.0 0.00 0.0 1.00 3.0
BsmtHalfBath 1460.0 0.057534 0.238753 0.0 0.00 0.0 0.00 2.0
FullBath 1460.0 1.565068 0.550916 0.0 1.00 2.0 2.00 3.0
HalfBath 1460.0 0.382877 0.502885 0.0 0.00 0.0 1.00 2.0
BedroomAbvGr 1460.0 2.866438 0.815778 0.0 2.00 3.0 3.00 8.0
KitchenAbvGr 1460.0 1.046575 0.220338 0.0 1.00 1.0 1.00 3.0
TotRmsAbvGrd 1460.0 6.517808 1.625393 2.0 5.00 6.0 7.00 14.0
Fireplaces 1460.0 0.613014 0.644666 0.0 0.00 1.0 1.00 3.0
GarageYrBlt 1379.0 1978.506164 24.689725 1900.0 1961.00 1980.0 2002.00 2010.0
GarageCars 1460.0 1.767123 0.747315 0.0 1.00 2.0 2.00 4.0
GarageArea 1460.0 472.980137 213.804841 0.0 334.50 480.0 576.00 1418.0
WoodDeckSF 1460.0 94.244521 125.338794 0.0 0.00 0.0 168.00 857.0
OpenPorchSF 1460.0 46.660274 66.256028 0.0 0.00 25.0 68.00 547.0
EnclosedPorch 1460.0 21.954110 61.119149 0.0 0.00 0.0 0.00 552.0
3SsnPorch 1460.0 3.409589 29.317331 0.0 0.00 0.0 0.00 508.0
ScreenPorch 1460.0 15.060959 55.757415 0.0 0.00 0.0 0.00 480.0
PoolArea 1460.0 2.758904 40.177307 0.0 0.00 0.0 0.00 738.0
MiscVal 1460.0 43.489041 496.123024 0.0 0.00 0.0 0.00 15500.0
MoSold 1460.0 6.321918 2.703626 1.0 5.00 6.0 8.00 12.0
YrSold 1460.0 2007.815753 1.328095 2006.0 2007.00 2008.0 2009.00 2010.0
SalePrice 1460.0 180921.195890 79442.502883 34900.0 129975.00 163000.0 214000.00 755000.0
## KEEPOUTPUT

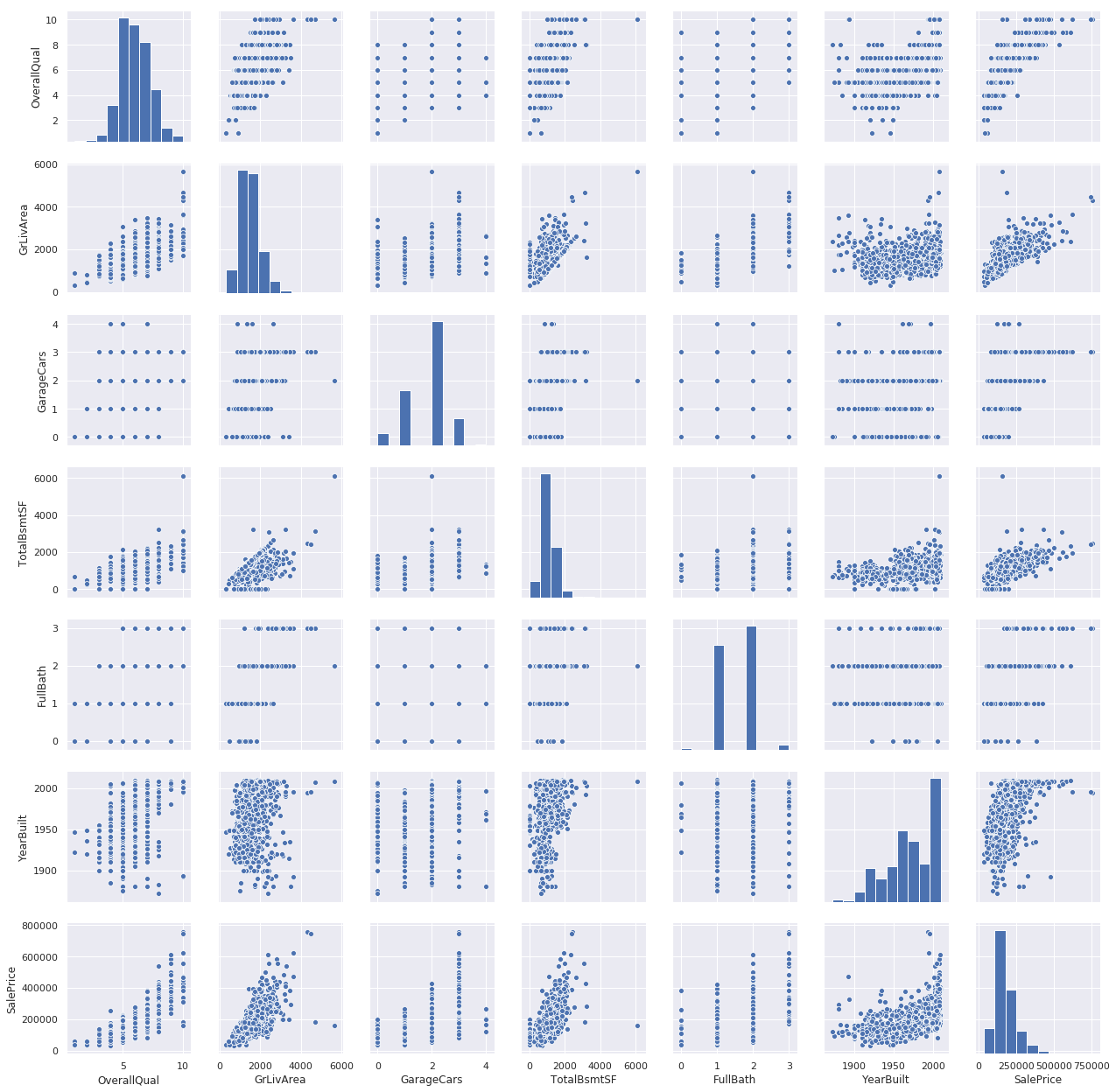

cols = ['OverallQual', 'GrLivArea', 'GarageCars', 'TotalBsmtSF', 'FullBath', 'YearBuilt', 'SalePrice']
#cols = np.unique(list(np.random.permutation(d._get_numeric_data().columns)[:5])+['SalePrice'])
sns.set()
sns.pairplot(d[cols])

<seaborn.axisgrid.PairGrid at 0x7f9ef2534e10>
../_images/NOTES 04.01 - DATA EXPLORATION_15_1.png

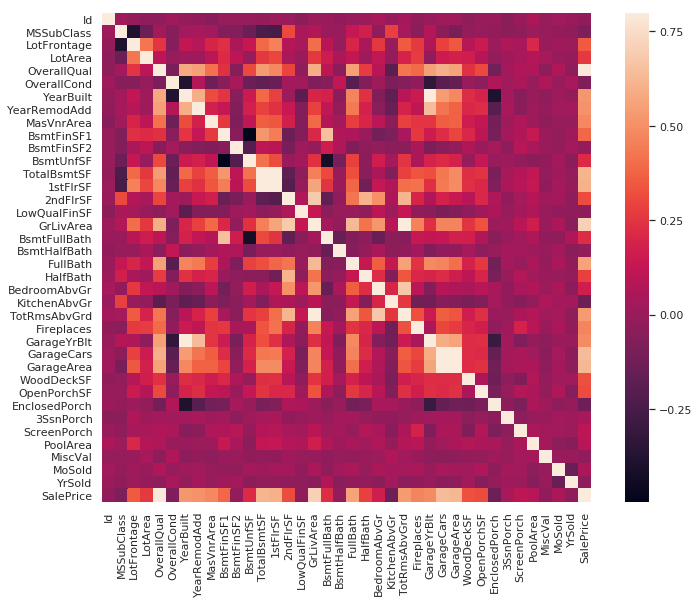

correlations

## KEEPOUTPUT
#correlation matrix
corrmat = d.corr()
f, ax = plt.subplots(figsize=(12, 9))
sns.heatmap(corrmat, vmax=.8, square=True);
../_images/NOTES 04.01 - DATA EXPLORATION_17_0.png

Inspect categorical variables

## KEEPOUTPUT
ccols = [i for i in d.columns if not i in d._get_numeric_data()]
print (ccols)

['MSZoning', 'Street', 'Alley', 'LotShape', 'LandContour', 'Utilities', 'LotConfig', 'LandSlope', 'Neighborhood', 'Condition1', 'Condition2', 'BldgType', 'HouseStyle', 'RoofStyle', 'RoofMatl', 'Exterior1st', 'Exterior2nd', 'MasVnrType', 'ExterQual', 'ExterCond', 'Foundation', 'BsmtQual', 'BsmtCond', 'BsmtExposure', 'BsmtFinType1', 'BsmtFinType2', 'Heating', 'HeatingQC', 'CentralAir', 'Electrical', 'KitchenQual', 'Functional', 'FireplaceQu', 'GarageType', 'GarageFinish', 'GarageQual', 'GarageCond', 'PavedDrive', 'PoolQC', 'Fence', 'MiscFeature', 'SaleType', 'SaleCondition']

## KEEPOUTPUT
for c in ccols:
    print ("%10s"%c, np.unique(d[c].dropna()))

  MSZoning ['C (all)' 'FV' 'RH' 'RL' 'RM']
    Street ['Grvl' 'Pave']
     Alley ['Grvl' 'Pave']
  LotShape ['IR1' 'IR2' 'IR3' 'Reg']
LandContour ['Bnk' 'HLS' 'Low' 'Lvl']
 Utilities ['AllPub' 'NoSeWa']
 LotConfig ['Corner' 'CulDSac' 'FR2' 'FR3' 'Inside']
 LandSlope ['Gtl' 'Mod' 'Sev']
Neighborhood ['Blmngtn' 'Blueste' 'BrDale' 'BrkSide' 'ClearCr' 'CollgCr' 'Crawfor'
 'Edwards' 'Gilbert' 'IDOTRR' 'MeadowV' 'Mitchel' 'NAmes' 'NPkVill'
 'NWAmes' 'NoRidge' 'NridgHt' 'OldTown' 'SWISU' 'Sawyer' 'SawyerW'
 'Somerst' 'StoneBr' 'Timber' 'Veenker']
Condition1 ['Artery' 'Feedr' 'Norm' 'PosA' 'PosN' 'RRAe' 'RRAn' 'RRNe' 'RRNn']
Condition2 ['Artery' 'Feedr' 'Norm' 'PosA' 'PosN' 'RRAe' 'RRAn' 'RRNn']
  BldgType ['1Fam' '2fmCon' 'Duplex' 'Twnhs' 'TwnhsE']
HouseStyle ['1.5Fin' '1.5Unf' '1Story' '2.5Fin' '2.5Unf' '2Story' 'SFoyer' 'SLvl']
 RoofStyle ['Flat' 'Gable' 'Gambrel' 'Hip' 'Mansard' 'Shed']
  RoofMatl ['ClyTile' 'CompShg' 'Membran' 'Metal' 'Roll' 'Tar&Grv' 'WdShake'
 'WdShngl']
Exterior1st ['AsbShng' 'AsphShn' 'BrkComm' 'BrkFace' 'CBlock' 'CemntBd' 'HdBoard'
 'ImStucc' 'MetalSd' 'Plywood' 'Stone' 'Stucco' 'VinylSd' 'Wd Sdng'
 'WdShing']
Exterior2nd ['AsbShng' 'AsphShn' 'Brk Cmn' 'BrkFace' 'CBlock' 'CmentBd' 'HdBoard'
 'ImStucc' 'MetalSd' 'Other' 'Plywood' 'Stone' 'Stucco' 'VinylSd'
 'Wd Sdng' 'Wd Shng']
MasVnrType ['BrkCmn' 'BrkFace' 'None' 'Stone']
 ExterQual ['Ex' 'Fa' 'Gd' 'TA']
 ExterCond ['Ex' 'Fa' 'Gd' 'Po' 'TA']
Foundation ['BrkTil' 'CBlock' 'PConc' 'Slab' 'Stone' 'Wood']
  BsmtQual ['Ex' 'Fa' 'Gd' 'TA']
  BsmtCond ['Fa' 'Gd' 'Po' 'TA']
BsmtExposure ['Av' 'Gd' 'Mn' 'No']
BsmtFinType1 ['ALQ' 'BLQ' 'GLQ' 'LwQ' 'Rec' 'Unf']
BsmtFinType2 ['ALQ' 'BLQ' 'GLQ' 'LwQ' 'Rec' 'Unf']
   Heating ['Floor' 'GasA' 'GasW' 'Grav' 'OthW' 'Wall']
 HeatingQC ['Ex' 'Fa' 'Gd' 'Po' 'TA']
CentralAir ['N' 'Y']
Electrical ['FuseA' 'FuseF' 'FuseP' 'Mix' 'SBrkr']
KitchenQual ['Ex' 'Fa' 'Gd' 'TA']
Functional ['Maj1' 'Maj2' 'Min1' 'Min2' 'Mod' 'Sev' 'Typ']
FireplaceQu ['Ex' 'Fa' 'Gd' 'Po' 'TA']
GarageType ['2Types' 'Attchd' 'Basment' 'BuiltIn' 'CarPort' 'Detchd']
GarageFinish ['Fin' 'RFn' 'Unf']
GarageQual ['Ex' 'Fa' 'Gd' 'Po' 'TA']
GarageCond ['Ex' 'Fa' 'Gd' 'Po' 'TA']
PavedDrive ['N' 'P' 'Y']
    PoolQC ['Ex' 'Fa' 'Gd']
     Fence ['GdPrv' 'GdWo' 'MnPrv' 'MnWw']
MiscFeature ['Gar2' 'Othr' 'Shed' 'TenC']
  SaleType ['COD' 'CWD' 'Con' 'ConLD' 'ConLI' 'ConLw' 'New' 'Oth' 'WD']
SaleCondition ['Abnorml' 'AdjLand' 'Alloca' 'Family' 'Normal' 'Partial']

## KEEPOUTPUT
c="GarageType"
d[c].value_counts()

Attchd     870
Detchd     387
BuiltIn     88
Basment     19
CarPort      9
2Types       6
Name: GarageType, dtype: int64

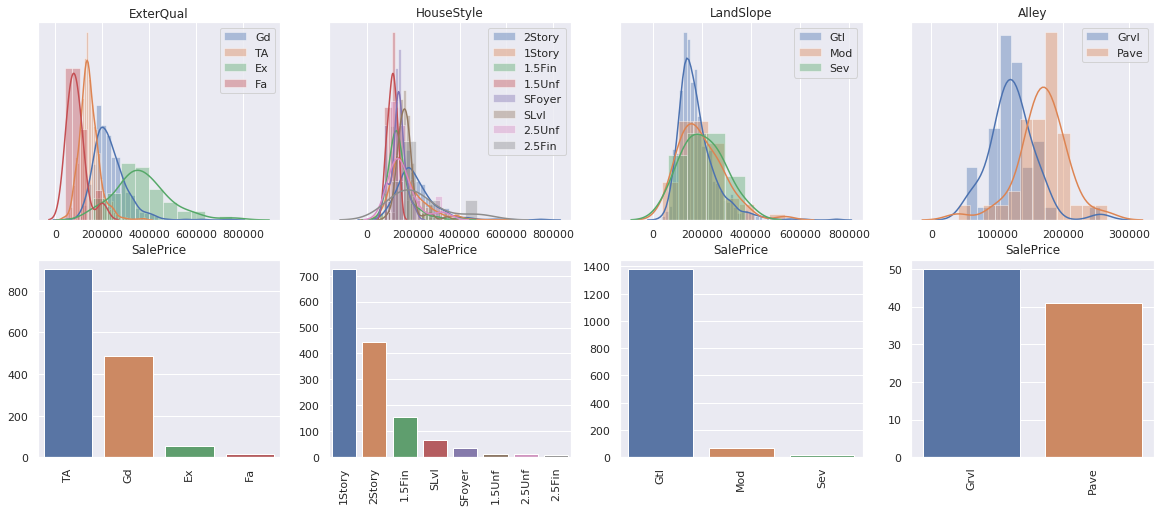

## KEEPOUTPUT
plt.figure(figsize=(20,8))
for i,c in enumerate(["ExterQual", "HouseStyle", "LandSlope", "Alley"]):
    plt.subplot(2,4,i+1)
    k=d[[c,"SalePrice"]].dropna()
    for v in d[c].dropna().unique():
        sns.distplot(k.SalePrice[k[c]==v], label=v);
        plt.title(c)
    plt.yticks([])
    plt.legend()
    plt.subplot(2,4,i+5)
    vc = k[c].value_counts()
    sns.barplot(vc.index, vc.values)
    plt.xticks(range(len(vc)), vc.index, rotation="vertical")
../_images/NOTES 04.01 - DATA EXPLORATION_22_0.png

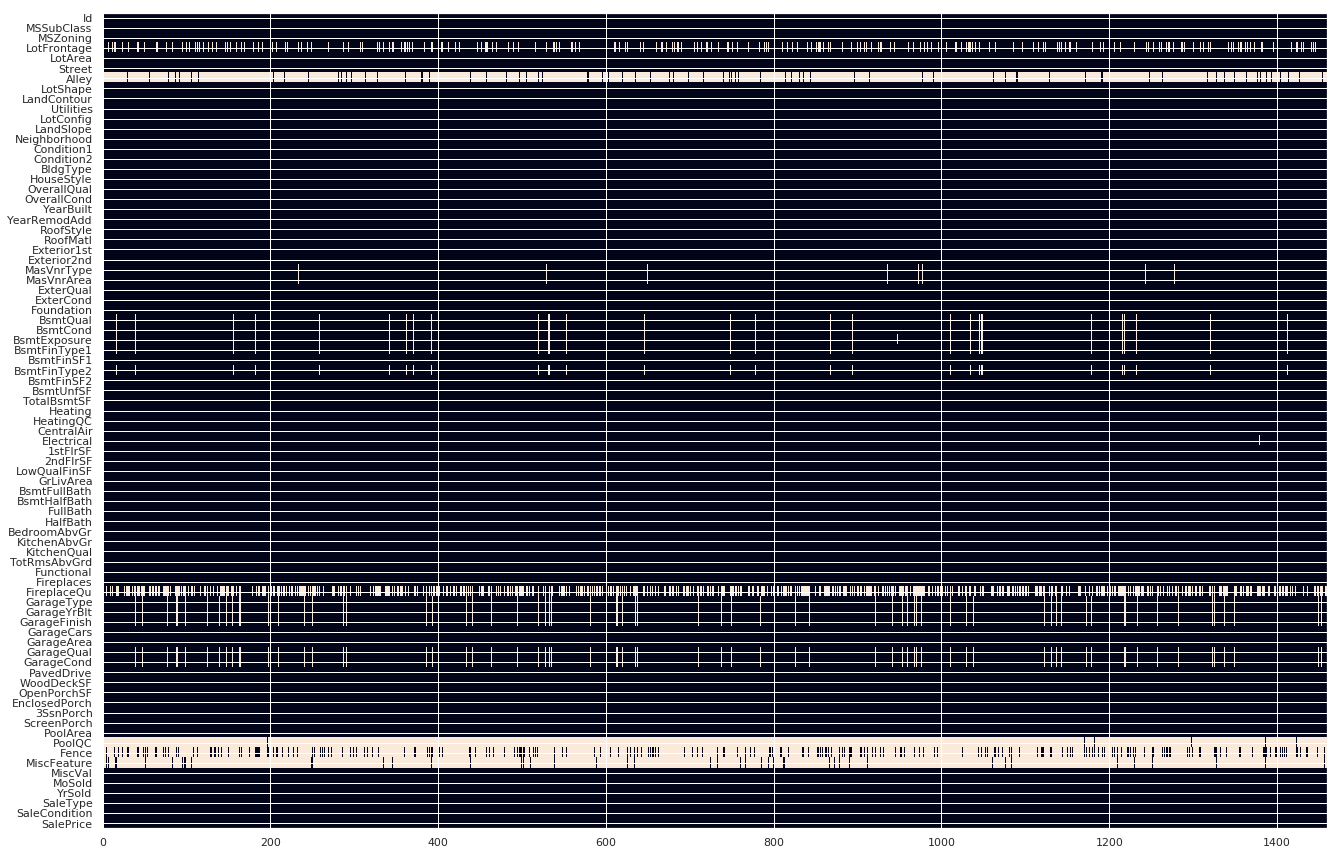

Vision on mission values

Missing values in columns

## KEEPOUTPUT
k = d.isna().sum()
k[k!=0]

LotFrontage      259
Alley           1369
MasVnrType         8
MasVnrArea         8
BsmtQual          37
BsmtCond          37
BsmtExposure      38
BsmtFinType1      37
BsmtFinType2      38
Electrical         1
FireplaceQu      690
GarageType        81
GarageYrBlt       81
GarageFinish      81
GarageQual        81
GarageCond        81
PoolQC          1453
Fence           1179
MiscFeature     1406
dtype: int64

## KEEPOUTPUT
ax = plt.figure(figsize=(30,15)).add_subplot(111)
ax.imshow(d.isna().values.T)
ax.set_aspect(12)
plt.yticks(range(d.shape[1]), d.columns);
../_images/NOTES 04.01 - DATA EXPLORATION_26_0.png
