07.04 - TENSORFLOW

!wget --no-cache -O init.py -q https://raw.githubusercontent.com/fagonzalezo/ai4eng-unal/main/content/init.py
import init; init.init(force_download=False); init.get_weblink()
endpoint https://m5knaekxo6.execute-api.us-west-2.amazonaws.com/dev-v0001/rlxmooc
import numpy as np
import matplotlib.pyplot as plt
from local.lib import mlutils
from IPython.display import Image

try:
    %tensorflow_version 2.x
    print ("Using TF2 in Google Colab")
except:
    pass

import tensorflow as tf
%matplotlib inline

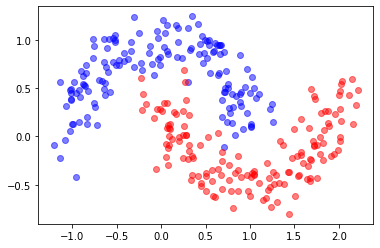

A dataset (again)

## KEEPOUTPUT
from sklearn.datasets import make_moons
X,y = make_moons(300, noise=.15)
plt.scatter(X[:,0][y==0], X[:,1][y==0], color="blue", label="class 0", alpha=.5)
plt.scatter(X[:,0][y==1], X[:,1][y==1], color="red", label="class 1", alpha=.5)
<matplotlib.collections.PathCollection at 0x7f34b2988f70>
../_images/NOTES 07.04 - NEURAL NETWORKS WITH TENSORFLOW_4_1.png

A neural network in tensorflow, 4 neurons in the hidden layer, 1 output

model = tf.keras.Sequential([
    tf.keras.layers.Dense(4, activation='tanh'),
    tf.keras.layers.Dense(1, activation='sigmoid')
])
model.compile(optimizer=tf.keras.optimizers.SGD(learning_rate=.5),
              loss=tf.keras.losses.BinaryCrossentropy(from_logits=False),metrics=['accuracy'])
## KEEPOUTPUT
model.fit(X,y, epochs=10, batch_size=1)
Epoch 1/10
300/300 [==============================] - 0s 480us/step - loss: 0.4007 - accuracy: 0.8267
Epoch 2/10
300/300 [==============================] - 0s 478us/step - loss: 0.3605 - accuracy: 0.8467
Epoch 3/10
300/300 [==============================] - 0s 469us/step - loss: 0.2444 - accuracy: 0.8900
Epoch 4/10
300/300 [==============================] - 0s 473us/step - loss: 0.1709 - accuracy: 0.9467
Epoch 5/10
300/300 [==============================] - 0s 470us/step - loss: 0.1837 - accuracy: 0.9467
Epoch 6/10
300/300 [==============================] - 0s 455us/step - loss: 0.1485 - accuracy: 0.9600
Epoch 7/10
300/300 [==============================] - 0s 467us/step - loss: 0.1072 - accuracy: 0.9633
Epoch 8/10
300/300 [==============================] - 0s 456us/step - loss: 0.0981 - accuracy: 0.9667
Epoch 9/10
300/300 [==============================] - 0s 472us/step - loss: 0.1252 - accuracy: 0.9600
Epoch 10/10
300/300 [==============================] - 0s 465us/step - loss: 0.1253 - accuracy: 0.9633
<tensorflow.python.keras.callbacks.History at 0x7f3430485850>

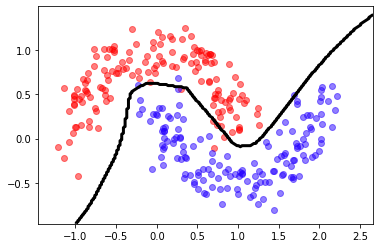

## KEEPOUTPUT
predict = lambda X: (model.predict(X)[:,0]>.5).astype(int)
mlutils.plot_2Ddata_with_boundary(predict, X, y)
(0.5318, 0.4682)
../_images/NOTES 07.04 - NEURAL NETWORKS WITH TENSORFLOW_8_1.png

A bigger network

  • different activation functions

  • different optimizer

model = tf.keras.Sequential([
    tf.keras.layers.Dense(20, activation='tanh'),
    tf.keras.layers.Dense(50, activation='relu'),
    tf.keras.layers.Dense(1, activation='sigmoid')
])
model.compile(optimizer=tf.keras.optimizers.Adam(learning_rate=.01),
              loss=tf.keras.losses.BinaryCrossentropy(from_logits=False),metrics=['accuracy'])
## KEEPOUTPUT
model.fit(X,y, epochs=10, batch_size=1)
Epoch 1/10
300/300 [==============================] - 0s 510us/step - loss: 0.3400 - accuracy: 0.8567
Epoch 2/10
300/300 [==============================] - 0s 508us/step - loss: 0.2804 - accuracy: 0.8867
Epoch 3/10
300/300 [==============================] - 0s 487us/step - loss: 0.2450 - accuracy: 0.8967
Epoch 4/10
300/300 [==============================] - 0s 532us/step - loss: 0.1722 - accuracy: 0.9433
Epoch 5/10
300/300 [==============================] - 0s 516us/step - loss: 0.1660 - accuracy: 0.9500
Epoch 6/10
300/300 [==============================] - 0s 527us/step - loss: 0.0917 - accuracy: 0.9700
Epoch 7/10
300/300 [==============================] - 0s 516us/step - loss: 0.1127 - accuracy: 0.9667
Epoch 8/10
300/300 [==============================] - 0s 507us/step - loss: 0.1118 - accuracy: 0.9600
Epoch 9/10
300/300 [==============================] - 0s 526us/step - loss: 0.1076 - accuracy: 0.9500
Epoch 10/10
300/300 [==============================] - 0s 487us/step - loss: 0.0840 - accuracy: 0.9800
<tensorflow.python.keras.callbacks.History at 0x7f340807ac10>

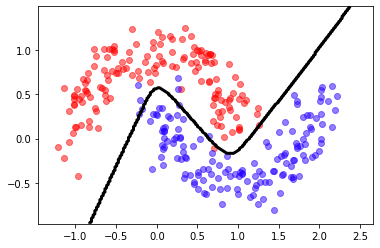

## KEEPOUTPUT
predict = lambda X: (model.predict(X)[:,0]>.5).astype(int)
mlutils.plot_2Ddata_with_boundary(predict, X, y)
(0.522575, 0.477425)
../_images/NOTES 07.04 - NEURAL NETWORKS WITH TENSORFLOW_12_1.png

Cross entropy - multiclass classification

follow THIS EXAMPLE in TensorFlow doc site. Observe that:

  • labels corresponding to a 10-class classification problem

  • the network contains 10 output neurons, one per output class

  • the loss function is SparseCategoricalCrossEntropy

Observe how cross entropy works with 4 classes:

  • first we convert the output to a one-hot encoding

  • we create a network with two output neurons with sigmoid activation

  • interpret each neuron’s output as elements of a probability distribution

  • normalize the probability distribution (must add up to one)

  • we consider network output is better when it yields more probability to the correct class

expected classes for five data points

## KEEPOUTPUT
y = np.random.randint(4, size=5)
y
array([3, 1, 2, 0, 3])

convert it to one hot encoding

## KEEPOUTPUT
y_ohe = np.eye(4)[y].astype(int)
y_ohe
array([[0, 0, 0, 1],
       [0, 1, 0, 0],
       [0, 0, 1, 0],
       [1, 0, 0, 0],
       [0, 0, 0, 1]])

simulate some neural network output with NO ACTIVATION function

with 10 output neurons, so for each input element (we have five) we have 4 outputs.

this is called LOGITS in Tensorflow

## KEEPOUTPUT
y_hat = np.round(np.random.normal(size=y_ohe.shape), 2)
y_hat
array([[ 0.06, -0.31, -0.95,  0.39],
       [ 0.92, -0.48, -0.08,  0.53],
       [-0.5 ,  0.22, -0.18,  1.81],
       [-0.49, -1.41,  0.09, -0.11],
       [-0.73,  0.26, -1.63, -0.68]])

normalize LOGITS. This is the SOFTMAX function

LOGITS obtained from network last layer with no activation

\[\hat{\mathbf{y}}^{(i)} = [\hat{y}^{(i)}_0, \hat{y}^{(i)}_1,...,\hat{y}^{(i)}_9]\]

SOFTMAX ACTIVATION

\[\hat{\bar{\mathbf{y}}}^{(i)} = [\hat{\bar{y}}^{(i)}_0, \hat{\bar{y}}^{(i)}_1,...,\hat{\bar{y}}^{(i)}_9]\]

with

\[\hat{\bar{y}}^{(i)}_k = \frac{e^{\hat{y}^{(i)}_k}}{\sum_{j=0}^9e^{\hat{y}^{(i)}_j}}\]

this ensures:

  • \(\sum_{k=0}^9 \hat{\bar{y}}^{(i)}_k=1\)

  • \(0 \le \hat{\bar{y}}^{(i)}_k \le 1\)

this way, for each input we have a nice probability distribution in its outputs.

This is implemented in Tensorflow

## KEEPOUTPUT
y_hatb = tf.nn.softmax(y_hat).numpy()
y_hatb
array([[0.29019814, 0.20044982, 0.10569567, 0.40365637],
       [0.43638904, 0.10761221, 0.16053855, 0.2954602 ],
       [0.06893706, 0.14162659, 0.09493514, 0.69450122],
       [0.21519991, 0.08576126, 0.38435531, 0.31468351],
       [0.19420963, 0.52266365, 0.07895974, 0.20416697]])

check sums

## KEEPOUTPUT
y_hatb.sum(axis=1)
array([1., 1., 1., 1., 1.])

how would you now measure how closely y_hatb is to the expected output on y_ohe?

cross entropy: just take the probability assigned to the correct class (and pass it through a log function)

\[\text{loss}(\bar{\mathbf{y}}^{(i)}, \hat{\bar{\mathbf{y}}}^{(i)}) = -\sum_{k=0}^9 \bar{y}^{(i)}_k\log(\hat{\bar{y}}^{(i)}_k)\]

where \(\bar{\mathbf{y}}^{(i)}\) is the one-hot encoding of the expected class (label) for data point \(i\).

observe that,

  • in the one-hot encoding \(\bar{\mathbf{y}}^{(i)}\) only one of the elements will be 1, and the rest will be 0’s, so the sumation above is only taking the log of the probability of the correct label.

  • the negative sign accounts for logs of values <1 are negative and we will later want to minimize the loss

This is implemented in Tensorflow

## KEEPOUTPUT
tf.keras.losses.categorical_crossentropy(y_ohe, y_hatb)
<tf.Tensor: shape=(5,), dtype=float64, numpy=array([0.90719134, 2.22922115, 2.35456137, 1.53618786, 1.58881713])>

Observe that TensorFlow also implements the corresponding sparse convenience function that works directly with our labels

## KEEPOUTPUT
tf.keras.losses.sparse_categorical_crossentropy(y, y_hatb)
<tf.Tensor: shape=(5,), dtype=float64, numpy=array([0.90719134, 2.22922115, 2.35456137, 1.53618786, 1.58881713])>
